Felix ONE


Small format single sided XY Glue Plotter Table

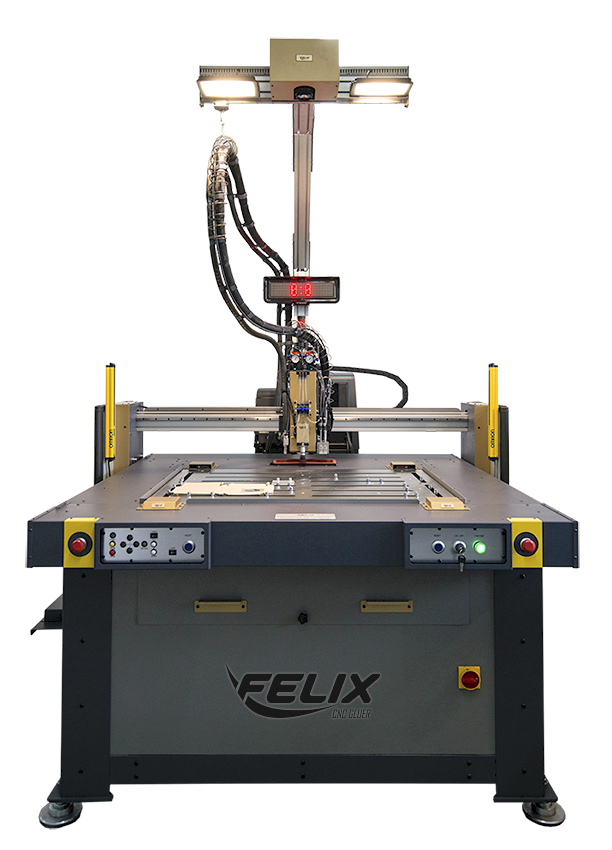

Introducing Felix ONE

Felix ONE is a small format XY Glue Plotter Table that can apply hot melt and cold PVA glues with extreme precision. The application area of the machine is 1050mm x 750mm (41 x 29.5 in.) and the motor driven worktable of the machine lowers up to 150mm (6 in.) for stacking of materials. Special integrated positioning pins on the worktable allow for small and unusually shaped materials to be held securely during production. Depending on the specification chosen, glues can be applied in bead, microdot and/or spray application modes.


    1050mm x 750mm (41 x 29.5 in.) application area


    Apply hot melt and/or cold PVA glues

    Bead, microdot and spray glue application modes


    Glue application speeds up to 1.5m/s (5ft/s)


    Elevating work table with integrated positioning pins

Video demonstration

Applications

The Felix ONE is a versatile gluer widely used in the print, point of purchase/sale and packaging industry, however it is not just limited to these markets. Commonly glued items include presentation folders, bespoke envelopes, counter top displays and boxes. If you’re unsure whether our machines would be suitable for your application, contact us to discuss your project and we can arrange sample testing and/or a demonstration.


    Counter display units (CDUs)


    Presentation folders


    Die cut cartons


    Non-standard envelopes


    POS/POP components

Images

Specification Overview
Glue Application Speed 1.5 m/s max. (adjustable)
Glue SystemsHot melt and/or cold (PVA) glue
Hot Melt Glue Application ModesBead, spray and microdot
Cold (PVA) Glue Application ModesBead, spray and microdot
SetupJoystick and laser, CAD file import and/or PhotoPath
Software LanguageEnglish
Electrical NeedsCountry dependent
Number of WorkspacesTwo fully independent work spaces
Save/Recall Jobs Unlimited
Work Table System Automatic elevating work table
Maximum Material Stack Height 150mm with locating pins
Compressed Air Requirements 6 Bar
Remote Connectivity Yes
Price Quotation on request
