Felix COMBO


Large format DUAL sided XY Glue Plotter Table

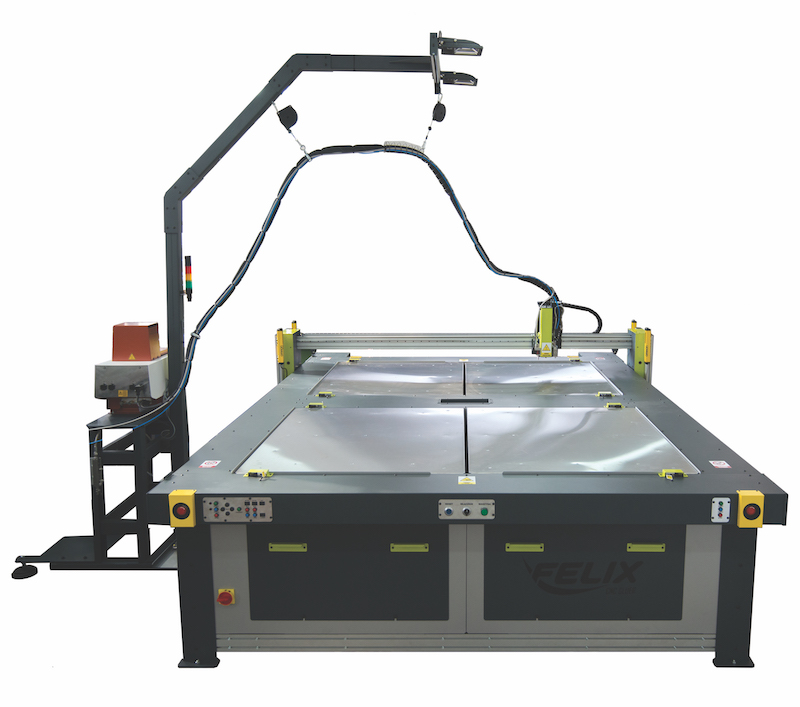

Introducing Felix COMBO

Felix COMBO is a large format dual sided XY Glue Plotter Table. Its unique design incorporates elevating work tables on both ends of the machine, this allows for up to four operators to use the machine at one time (two on each end). Both hot melt and cold PVA glues can be applied with extreme position in bead, microdot and/or spray application modes. Multiple jobs can be glued simultaneously in different areas of the machine for maximum productivity and versatility. Felix COMBO is available in a range of different sizes to suit all requirements.


    Range of dual sided table sizes available (see further down page)


    Apply hot melt and/or cold PVA glues


    Bead, microdot and/or spray glue application modes


    Glue application speeds up to 2.5m/s (8.2ft/s)


    Elevating work tables for stacking of materials


Video demonstration

Applications

The Felix automatic CNC glue application machine is widely used in the print, point of sale (POS) and packaging industry, however it is not just limited to these markets. Commonly glued items include corrugated boxes, free standing display units, dump bins, and much more! With the machine being able to apply both hot melt and cold (PVA) glue simultaneously, the possibilities are endless. Apply glues to almost any type of material, in any shape!


    Corrugated POS/POP displays (FSDUs, CDUs, dump bins)


    Standard or bespoke corrugated cartons


    Foam for packaging, insulation or acoustics


    Expanded polystyrene for packaging, insulation and construction


    Specific niche industry applications, talk to us!

Available Table Sizes

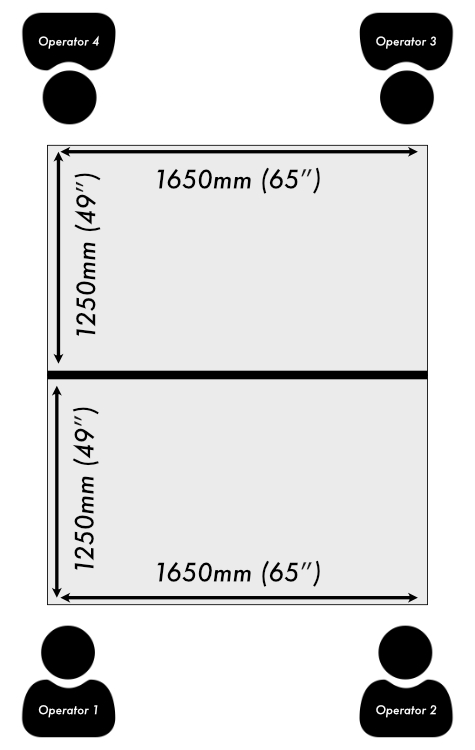

SMALL


(x2)   1650mm x 1250mm

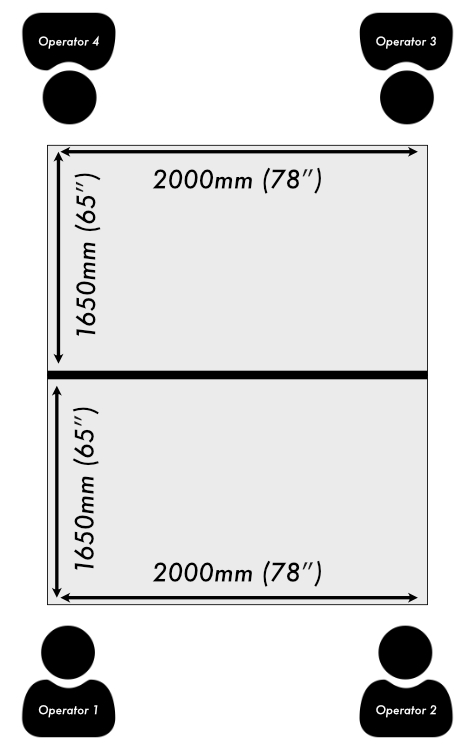

MEDIUM


(x2)   2000mm x 1650mm

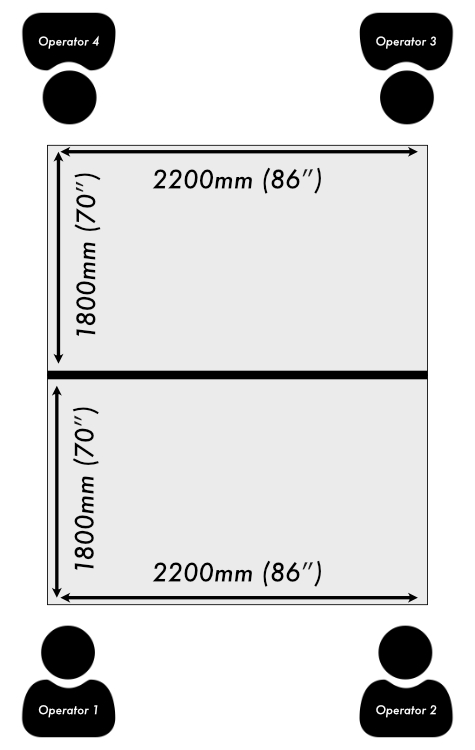

LARGE


(x2)   2200mm x 1800mm

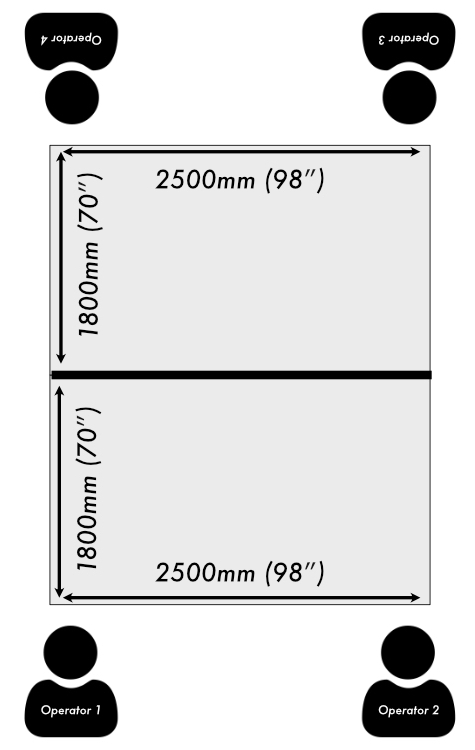

XL


(x2)   2500mm x 1800mm



Specification Overview

Enquire about this machine
Machine Speed 2.5 m/s max. (adjustable)
Glue SystemsHot melt and/or cold (PVA) glue
Hot Melt Glue Application ModesBead, spray and microdot
Cold (PVA) Glue Application ModesBead, spray and microdot
SetupJoystick and laser, CAD file import and/or PhotoPath
Software LanguageEnglish
Electrical NeedsCountry dependent
Number of WorkspacesFour fully independent work spaces
Save/Recall JobsUnlimited
Work Table System Automatic elevating work table
Maximum Material Stack Height500mm (20 in.)
Compressed Air Requirements 6 Bar
Remote ConnectivityYes
PriceQuotation on request
